15-5PH is a martensitic precipitation hardening stainless steel with improved toughness and ductility compared to 17-4PH. It features high strength, good hardness, superior corrosion resistance and excellent transverse mechanical properties. After solution annealing and aging treatment, it delivers stable structural performance, good wear resistance and outstanding dimensional stability. Widely used in aerospace components, food processing equipment, oil and gas parts, valve accessories and high

Advantage

1.High strength and hardness after aging treatment, excellent structural bearing capacity 2.Better toughness and ductility than 17-4PH, stronger impact resistance 3.Moderate corrosion resistance, suitable for wet and weak corrosive environments 4.Fine machinability and heat treatment stability for industrial mass processing

Ingredient

• Cr
• 14.00 ~ 15.50
• Ni
• 4.50 ~ 5.50
• Cu
• 2.50 ~ 4.00
• Nb
• 0.15 ~ 0.45
• C
• ≤0.07
• Mn
• ≤1.00
• Si
• ≤1.00
• P
• ≤0.040
• S
• ≤0.030
• Fe
• Balance

• Board
• Stick
• Pipe
• Forging

Title

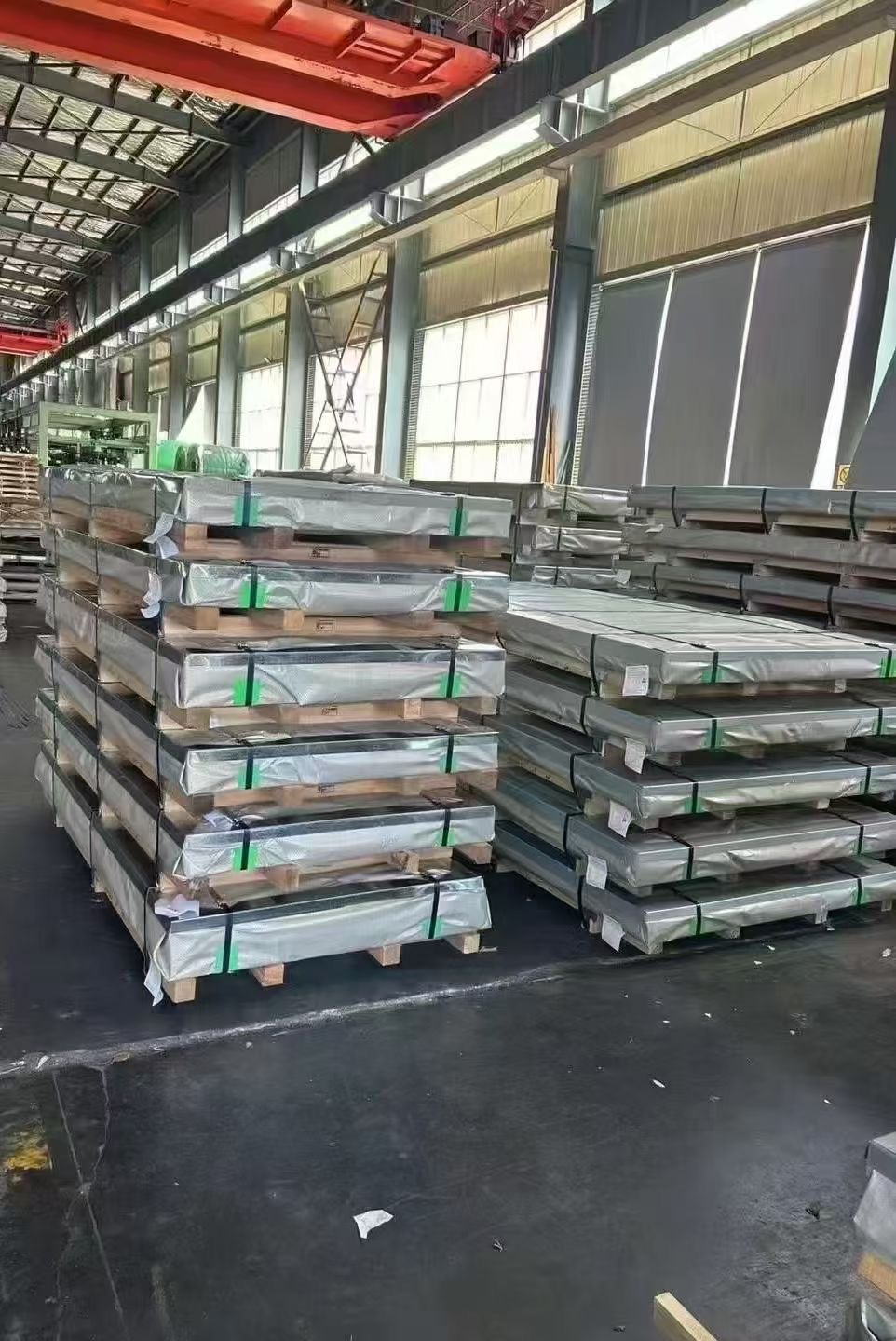

15‑5PH Board

Size

0.5mm – 100mm

Length

1000mm – 6000mm (customizable)

Production

Hot rolled + Annealed

Surface

Pickled / 2B / Polished

Processing

Hot rolled + Annealed

Standard

• USA
• ASTM A693 / ASME SA693
• China
• GB/T 4237‑2017、GB/T 20878‑2020

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Annealed
• ≥965 MPa
• ≥725 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J
• Annealed
• ≥930 MPa
• ≥690 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J

• STATE
• Annealed
• RP
• ≥965 MPa
• YIELD
• ≥725 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J
• STATE
• Annealed
• RP
• ≥930 MPa
• YIELD
• ≥690 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J

Title

15‑5PH Stick

Size

8mm – 300mm

Length

1000mm – 6000mm (customizable)

Production

Hot rolled + Annealed

Surface

Black / Peeled / Polished

Processing

Hot rolled + Annealed

Standard

• USA
• ASTM A564 / ASME SA564
• China
• GB/T 1220‑2021、GB/T 4356‑2021

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Annealed
• ≥965 MPa
• ≥725 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J
• Annealed
• ≥930 MPa
• ≥690 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J

• STATE
• Annealed
• RP
• ≥965 MPa
• YIELD
• ≥725 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J
• STATE
• Annealed
• RP
• ≥930 MPa
• YIELD
• ≥690 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J

Title

15‑5PH Pipe

Size

6mm – 500mm OD, 1mm – 50mm WT

Length

1000mm – 12000mm (customizable)

Production

Hot finished + Annealed / Cold drawn + Annealed

Surface

Pickled / Bright annealed / Polished

Processing

Hot finished + Annealed / Cold drawn + Annealed

Standard

• USA
• ASTM A312 / ASME SA312
• China
• GB/T 12771‑2020、GB/T 14976‑2012

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Annealed
• ≥965 MPa
• ≥725 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J
• Annealed
• ≥930 MPa
• ≥690 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J

• STATE
• Annealed
• RP
• ≥965 MPa
• YIELD
• ≥725 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J
• STATE
• Annealed
• RP
• ≥930 MPa
• YIELD
• ≥690 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J

Title

15‑5PH Forging

Size

Custom size available

Length

Custom size available

Production

Forged + Annealed

Surface

Rough forged / Machined / Polished

Processing

Forged + Annealed

Standard

• USA
• ASTM A182 / ASME SA182
• China
• GB/T 4238‑2022、GB/T 10088‑2018

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Annealed
• ≥965 MPa
• ≥725 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J
• Annealed
• ≥930 MPa
• ≥690 MPa
• ≥15 %
• ≥45 %
• ≤331 HBW
• ≥25 J

• STATE
• Annealed
• RP
• ≥965 MPa
• YIELD
• ≥725 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J
• STATE
• Annealed
• RP
• ≥930 MPa
• YIELD
• ≥690 MPa
• EXTEND
• ≥15 %
• SHRINK
• ≥45 %
• HARDNESS
• ≤331 HBW
• IMPACT
• ≥25 J
