Inconel 800H is a solid-solution strengthened iron-nickel-chromium austenitic alloy, an upgraded version of Inconel 800 with controlled carbon (0.05–0.10%) and grain size for superior creep resistance above 600°C. It exhibits excellent oxidation, carburization, and sulfidation resistance, combined with good mechanical strength and stress rupture properties at elevated temperatures. Widely used in furnace components, ethylene cracking tubes, heat exchangers, and pressure vessels for petrochemical

Advantage

1.Exceptional creep & stress rupture strength at 600–900°C, ideal for long-term high-temperature service 2. Excellent resistance to oxidation, carburization and sulfidation in high-temperature industrial atmospheres 3. Good resistance to chloride stress corrosion cracking and nitric/organic acid corrosion 4. Stable mechanical properties and reliable performance in cryogenic to elevated temperature ranges

Ingredient

• C
• 0.05-0.10
• Si
• ≤1.00
• Mn
• ≤1.50
• Cr
• 19.0-23.0
• S
• ≤0.015
• Ni
• 30.0-35.0
• Cu
• ≤0.75
• Fe
• Balance (≥39.5)
• Al
• 0.15-0.60
• Ti
• 0.15-0.60
• P
• ≤0.045

• Board
• Stick
• Pipe
• Forging

Title

Inconel 800H Board

Size

0.5mm - 100mm

Length

1000mm - 6000mm (customizable)

Production

Hot rolled + Solution annealing

Surface

Pickled / 2B / Polished

Processing

Hot rolled + Solution annealing

Standard

• USA
• ASTM B409 / ASME SB409
• China
• GB/T 14992-2008、GB/T 15007-2017

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Solution Annealed
• ≥515 MPa
• ≥205 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J
• Solution Annealed
• ≥500 MPa
• ≥200 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J

• STATE
• Solution Annealed
• RP
• ≥515 MPa
• YIELD
• ≥205 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J
• STATE
• Solution Annealed
• RP
• ≥500 MPa
• YIELD
• ≥200 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J

Title

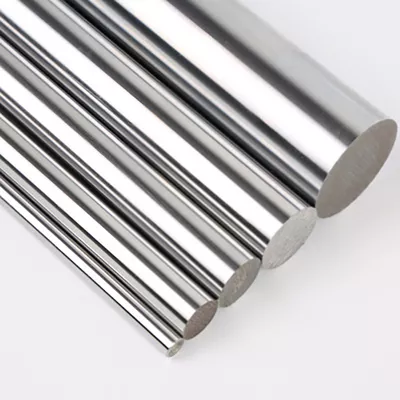

Inconel 800H Stick

Size

Φ3mm - Φ300mm

Length

1000mm - 6000mm (customizable)

Production

Forging + Solution annealing

Surface

Black skin / Turned / Polished

Processing

Forging + Solution annealing

Standard

• USA
• ASTM B408 / ASME SB408
• China
• GB/T 14992-2008、GB/T 15007-2017

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Solution Annealed
• ≥515 MPa
• ≥205 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J
• Solution Annealed
• ≥500 MPa
• ≥200 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J

• STATE
• Solution Annealed
• RP
• ≥515 MPa
• YIELD
• ≥205 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J
• STATE
• Solution Annealed
• RP
• ≥500 MPa
• YIELD
• ≥200 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J

Title

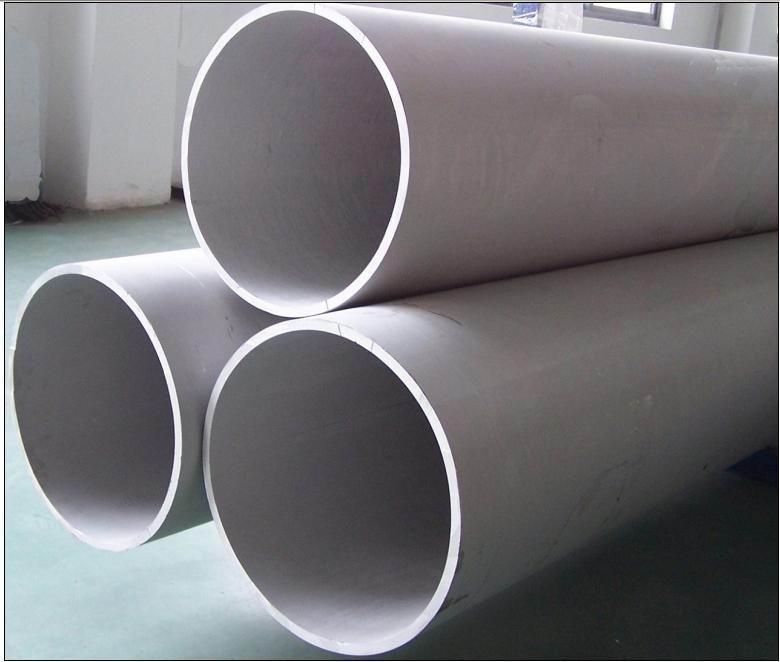

Inconel 800H Pipe

Size

Φ6mm - Φ325mm

Length

1000mm - 6000mm (customizable)

Production

Hot extruded / Cold drawn + Solution annealing

Surface

Pickled / Bright annealed

Processing

Hot extruded / Cold drawn + Solution annealing

Standard

• USA
• ASTM B407 / ASME SB407
• China
• GB/T 14992-2008、GB/T 15007-2017

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Solution Annealed
• ≥515 MPa
• ≥205 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J
• Solution Annealed
• ≥500 MPa
• ≥200 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J

• STATE
• Solution Annealed
• RP
• ≥515 MPa
• YIELD
• ≥205 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J
• STATE
• Solution Annealed
• RP
• ≥500 MPa
• YIELD
• ≥200 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J

Title

Inconel 800H Forging

Size

Custom customized

Length

Custom customizable

Production

Hot forging + Solution annealing

Surface

Forged black surface / Machined

Processing

Hot forging + Solution annealing

Standard

• USA
• ASTM B564 / ASME SB564
• China
• GB/T 14992-2008、GB/T 15007-2017

Mechanics

• STATE
• RP
• YIELD
• EXTEND
• SHRINK
• HARDNESS
• IMPACT
• Solution Annealed
• ≥515 MPa
• ≥205 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J
• Solution Annealed
• ≥500 MPa
• ≥200 MPa
• ≥30 %
• ≥35 %
• ≤200 HBW
• ≥27 J

• STATE
• Solution Annealed
• RP
• ≥515 MPa
• YIELD
• ≥205 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J
• STATE
• Solution Annealed
• RP
• ≥500 MPa
• YIELD
• ≥200 MPa
• EXTEND
• ≥30 %
• SHRINK
• ≥35 %
• HARDNESS
• ≤200 HBW
• IMPACT
• ≥27 J
